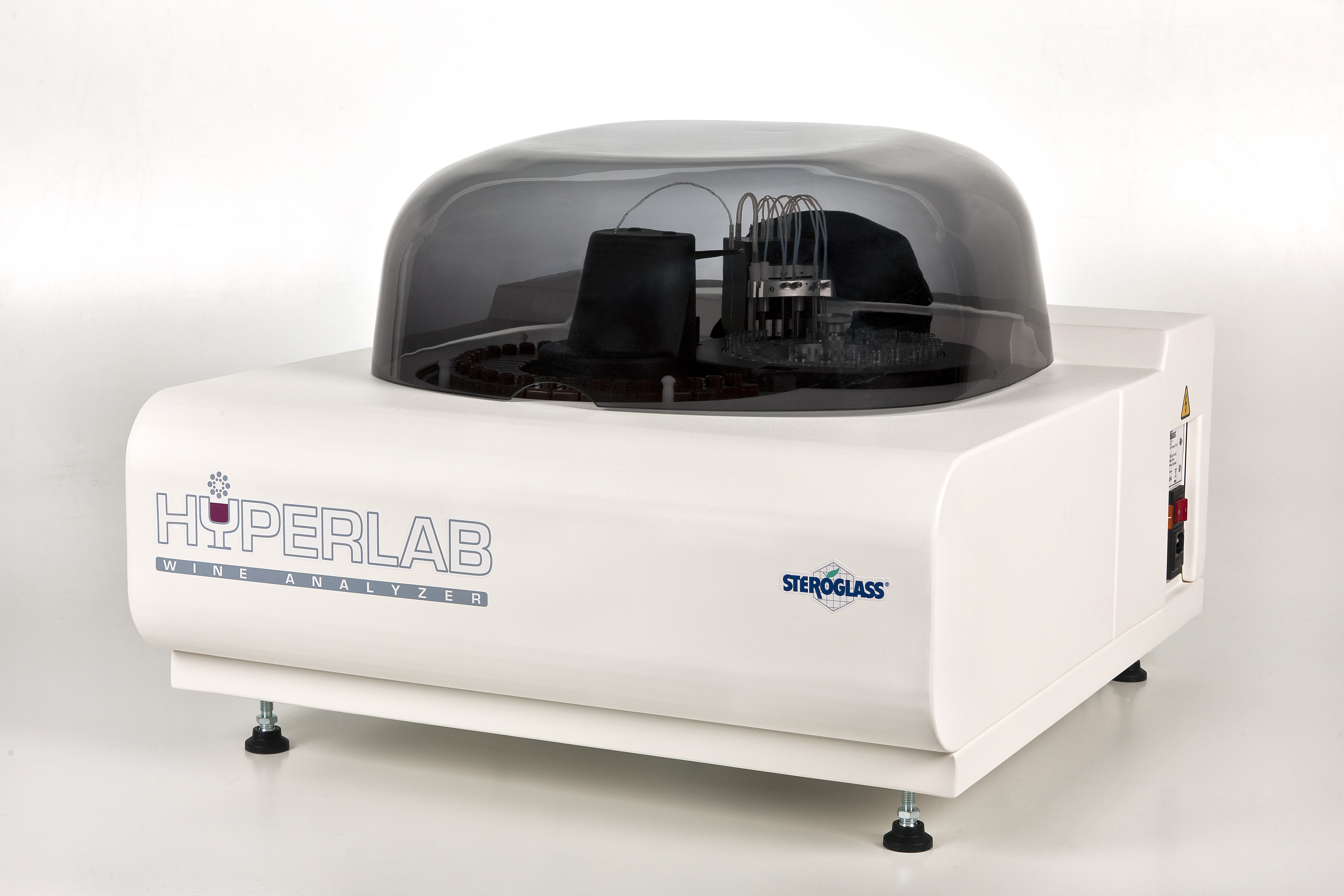

Multiparametric analyzer Hyperlab Basic
Contact our expert for more informations.

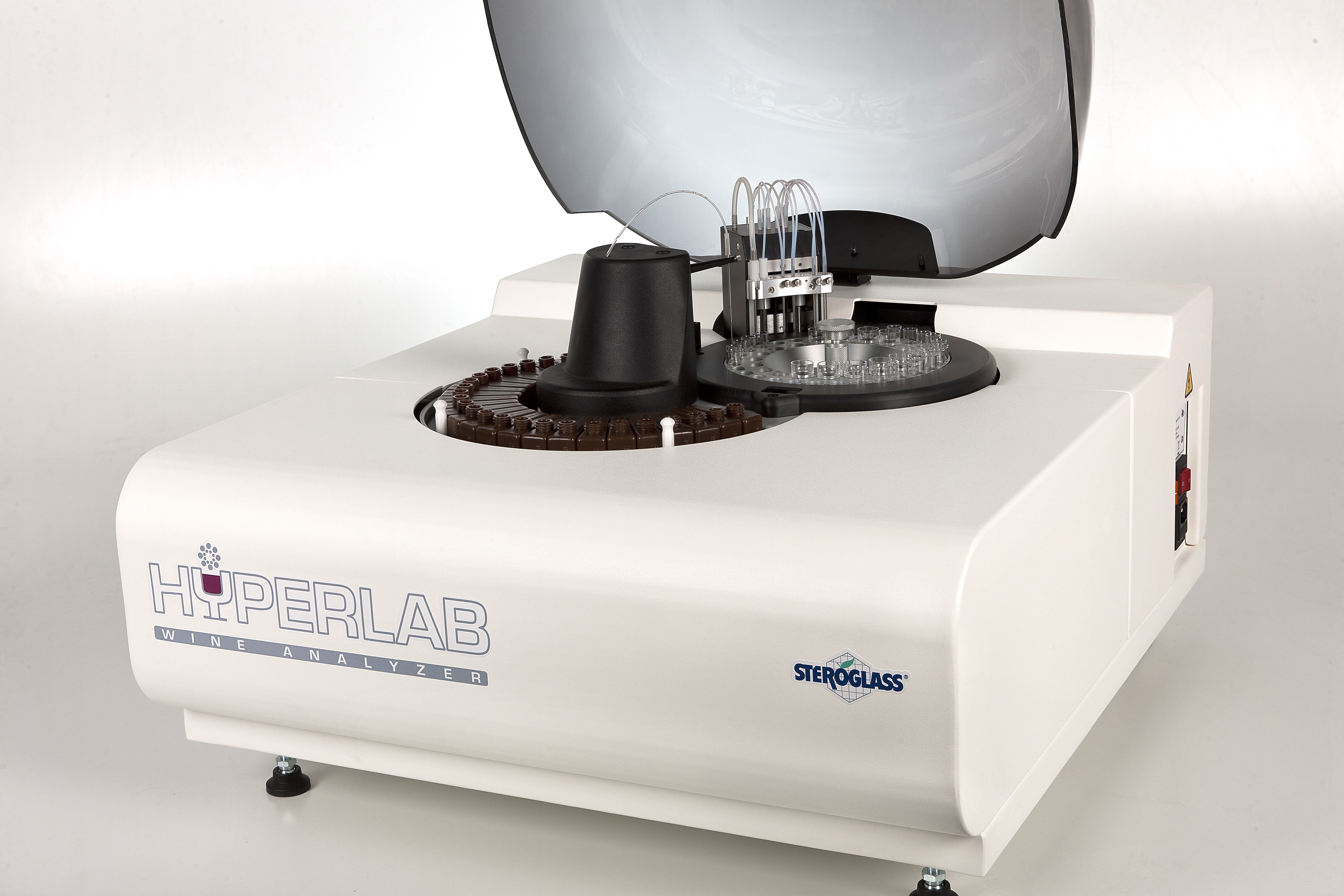

HYPERLAB BASIC is a flexible, random-access, multiparametric robotic enological analyzer: it can autonomously perform all operations required by various manual analytical procedures. The sampling arm, controlled by a microprocessor, handles sample collection, dilution (if required by the method), and reagent collection. The sample and reagents are dispensed into a reaction cuvette where they remain at a constant, controlled temperature for the necessary time to fully develop the reaction.
The reaction product is read at the programmed wavelength, and the recorded absorbance is converted into concentration through appropriate calculation algorithms. During the process, the analyzer alternates the cycles of aspiration and dispensing with washing phases to eliminate any contamination between reagents and samples. At the end of the analytical process, each reaction cuvette goes through a cleaning station where a washing solution is dispensed and aspirated six times using six different devices. After drying, the cuvette undergoes a rigorous optical inspection before being made available for further analyses.
Benefits
-
INNOVATIVE SOFTWARE
Windows operating system, simplified working functions, touch screen technology, programmable start-up shutdown and power on, online technical application support.
-
MONITOR
Information on programmed methods, selected analyses, number of analyses executable with available reagents, status of calibrations and controls.
4o
-
REAGENT PANEL
Displays the position of the reagents and their volume.
-
SAMPLES
Display of sample status, possibility to add, remove, edit samples while working.
-
WORKING LISTS
Unlimited work lists can be used simultaneously. It is possible to add or remove tests, perform automatic retesting of failing tests and inspection of reaction kinetics per test.
-
CALIBRATIONS
Subtraction of reagent blank, 1 to 8 calibrators per test. Linear, non-linear regression with three data extrapolation models: cubic, polynomial, log-logit.
-
DATA PROCESSING
Possibility of recalculating results by correlating them with one or more samples of known titre. Display of the new regression line produced by the recalculation.
-
MAIN TESTS
All analyses traceable to a spectrophotometric determination can be automated.
Technical features
VOLUMES
Sample: 2 - 300 µl, precision 1% at 10 µl
Reagent: 5 - 350 µl, precision < 1% at 250 µl
Reaction (sample + reagents): 220 - 350 µl
Mixing in cuvette after dispensing
DILUTIONS
Programmable automatic dilutions for each sample
Factors: 1:1 - 1:4 - 1:10 - 1:40 - 1:100
TEMPERATURE CONTROL
Reagents cooled to 15°C below ambient temperature
Reading cuvette with programmable heating
Preheating of reagents in the aspiration needle
TYPES OF TESTS
End Point, Bichromatic End Points, Differential End Points, Differential End Points with Sample Blank, Derivatives, Fixed Time, Kinetics. Insertion of polynomial algorithms during method programming.
SAMPLING NEEDLE
Anti-crash needle (PLUS), capacitive level sensor, reagent preheating

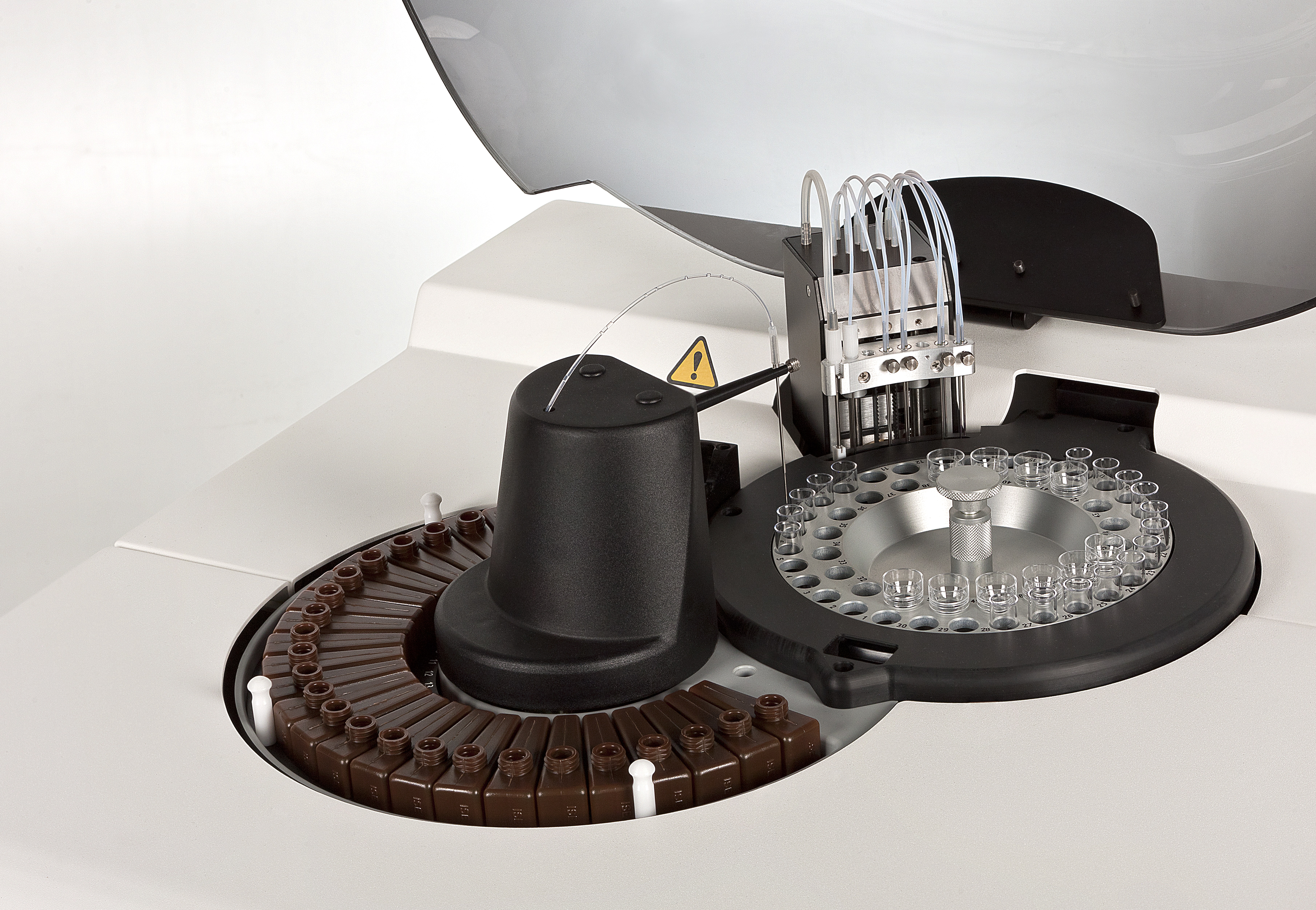

REACTION CUVETTE ROTOR
80 individually replaceable BIONEX cuvettes, over 20,000 tests executable
WASHING STATION
Hyperlab BASIC: 4 dosing needles for washing solution, 5 aspiration needles, 1 drying needle, 6 washing cycles per cuvette
OPTICAL GROUP
1 halogen lamp 6V, 10W with UV extension, 2 focusing lenses, 10 positions for interference filters, 8 positions occupied by 340, 420, 520, 546, 578, 620, 650, 700, one free position and one occupied for dark reading
DATA REPROCESSING
Ability to reprocess results at the end of the analysis correlating them with samples of known value
INNOVATIVE SOFTWARE
A true innovation in ease of use. The optimized random approach allows the operator to work extremely easily and effectively.
Windows operating system
TESTS IN MEMORY
Acetic Acid, Citric Acid, Gluconic Acid, Lactic Acid, Malic Acid, Pyruvic Acid, Tartaric Acid, Acetaldehyde, Anthocyanins, Alpha-Amino Nitrogen, Ammonia Nitrogen, Calcium, Catechins, Iron, Glycerin, Glucose/Fructose, Magnesium, Total Polyphenols, Chlorides, Free and Total SO2, Copper, Potassium, Color Intensity, Hue.
Download
Robustness and High Productivity!
- 150 analyses per hour
- 46 sample cups of 30 ml each
- Refrigerated reagent tray with 26 positions
- Stainless steel needle with capacitive sensor
- 4 dosing needles for washing solution, 5 aspiration needles, 1 drying needle, 6 washing cycles per cuvette
Industries
Applications
Product codes
| Codice | Descrizione |
|---|---|
| SQRQ065038 | HYPERLAB BASIC ANALYZER |
| SQRR060788 | HALOGEN LAMP |
| SQRR060810 | PERISTALTIC PUMP HEAD |
| SQRP060815 | 2x100ml SYSTEM SOLUTION |
| SQRR066251 | SAMPLING NEEDLE |
| SQRR067110 | 25ml BOTTLE HOLDER HYPERLAB BASIC - 30pcs |
| SQRP066224 | 12x56mm SAMPLE TUBE - 1000pcs |
| KHCB037315 | TEST TUBE CAP 1000pcs A93.0100.10 |
| SQRP066223 | 1ml SAMPLE CUP WITH CAP for HYPERLAB - 1000pcs |
| SQRP060797 | 3ml SAMPLE CUP - 1000pcs |
| SQRR067109 | CAP FOR BOTTLE - 30pcs |
| SQRR072229 | 10ml REAGENT BOTTLE FOR BASIC - 10pcs |
| SQRP060807 | REACTION CELL for HYPERLAB 200pcs |
