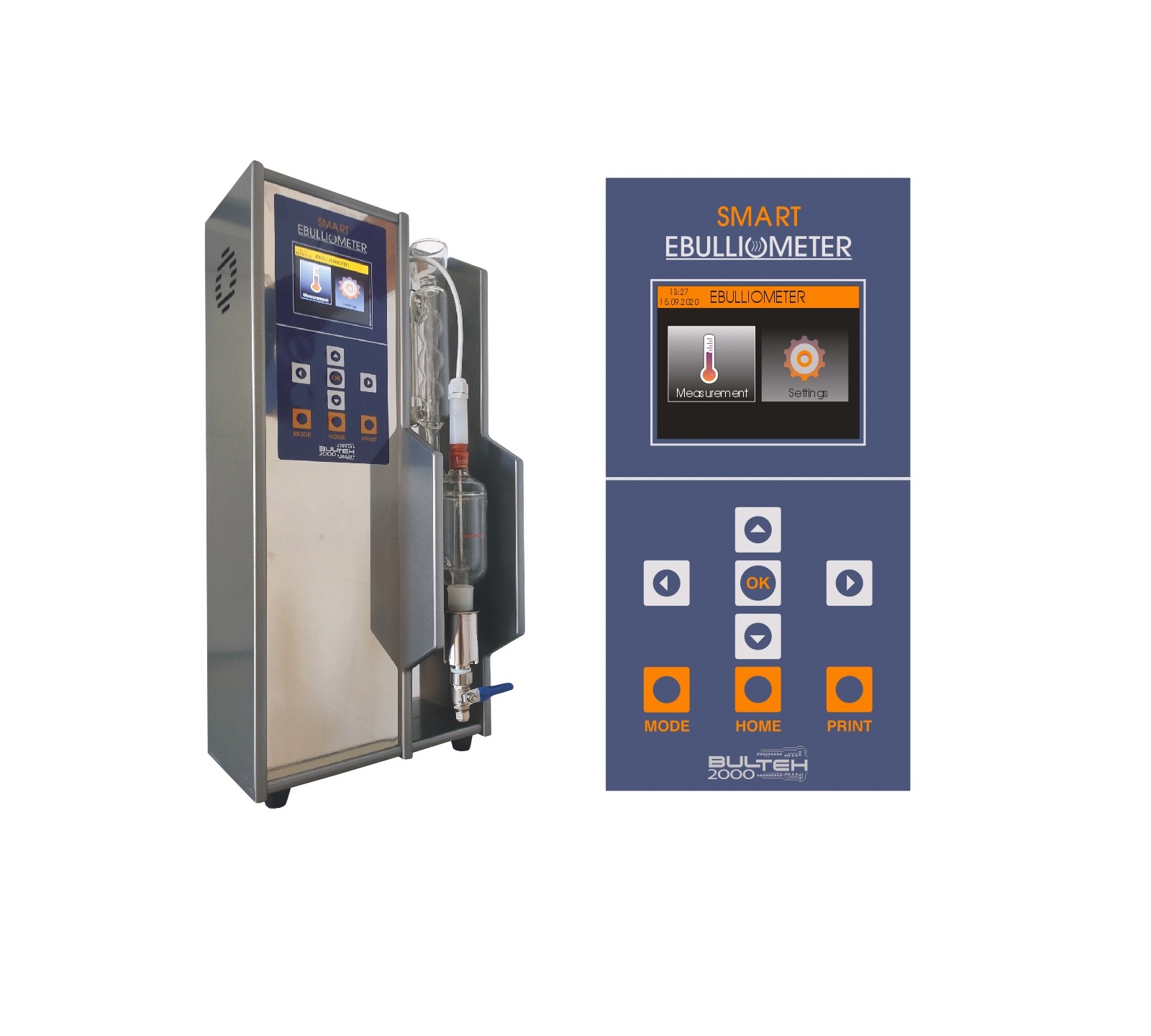

SMART EBULLIOMETER
Contact our expert for more informations.
The Smart Ebulliometer has a modern and intuitive graphical interface and provides not only the boiling temperature but also the alcohol content value directly.
The principle of operation of Smart Ebulliometer is based on the calculation of the volume content of alcohol as a function of the difference between the boiling temperature of distilled water and the boiling temperature of the sample at the same atmospheric pressure.
The constant measurement of atmospheric pressure made automatically by the instrument allows for simple, quick and reliable use.
It is possible to differentiate the wines in:
- Dry wines, up to 5 g/l sugar
- Semi-dry wines, up to 20 g/l
- Sweet wines, up to 200 g/l (also sugar correction in brix)
in order to automatically calculate the relevant correction factor in alcohol measurement.
Technical features
- Automatic control of heating power;
- Automatic determination of boiling temperature;
- Automatic measurement of atmospheric pressure;
- Automatic calculation of alcohol content;
- Separate alcohol correction for different types of wine;
- RS 232 interface and built-in firmware update system.
Download
0 -15 % Range (% volume alcohol )
- Resolution: 0.01%
- Repeatability: ±0.05%
- Measurement accuracy (absolute): ±0.1%
15 - 25 % Range (% volume alcohol )
- Resolution: 0.01%
- Repeatability: ±0.1%
- Measurement accuracy (absolute) ±0.2%
Industries
Applications
Product codes
| Steroglass code | Description |
|---|---|
| EDRQ087791 | EBULLIOMETER SMART NEW |
