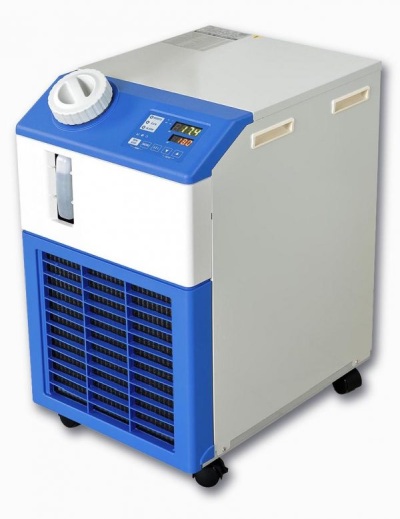

Thermo chiller S300 +5/+40°C HRS012
Contact our expert for more informations.
The HRS012 thermo-chiler is designed to meet the thermostating needs of small-medium size instrumentation, its optimal use is in conjunction with rotary evaporators and reactor or distillation coolers.
The HRS012 thermo-chiler is therefore the optimal choice in combination with a Strike 300 or a Labreactor Steroglass.
Thermo-chiller HRS offers convenient functions, self diagnosis and check display for easy maintenance.
An angled supply port facilitates the supply of circulating fluid, even when units are stacked.
A Large digital display provides a clear view of the current and set values.
The dustproof filter is integrated with the grill of the front panel allowing mounting and removal of the HRS filter to be done easily and without tools.
A precision temperature control method which utilizes expansion valves and temperature sensors
allowed for the realization of a product with a high temperature stability of ±0.1 °C and a small-size tank.
Due to the adoption of a sealless pump, no external leakage of the circulating fluid occurs. Also, periodic checking for pump leakage and replacement of the mechanical seal are not necessary.
FUNCTIONS:
Self diagnosis and check display for easy maintenance
Timer operation
Low tank level detecting
Power failure auto-restart
Anti-freezing
Serial communication (RS232C/RS485) and contact I/Os (2 inputs and 3 outputs) are equipped as standard.
EXAMPLES OF APPLICATION
- Solvent condensation in Strike 300 rotary evaporators
- Vapor condensation in Labreactor laboratory reactors
- Steam condensation in distillation equipment
- Arc welding machine
- Resistance welding machine
- Laser welding machine
- Laser cutting machines
- Power supply
- Fiber laser
- Connectors for transmission cables
- Secondary battery manufacturing processes
- 3D printers in metal
- UV devices for LED vulcanization
- X-ray instrumentation
- Electron microscopy
- MRI (Magnetic Resonance Imaging)
- Laser Marker Oscillator
- Machine for the control of ultrasonic waves
- Atomization device / Crushing device
- Linear motor
- Packers (food products)
- Atomization device (food and cosmetics)
- Cooling of molds
- Machines for machining centers
- Injection molding
- Temperature control of adhesives and paint materials
- Cooling of the vacuum pump
- Coupling machine by forcing
- Cabinet for gas cylinders
- Tester
- Concentration equipment
- Reagent cooling equipment
- Cleaning machine (hydrocarbon based)
- Printing machine
- Chamber electrode
- High frequency induction heating equipment
TECNIC FEATURES
Cooling method: Air cooling
Refrigerant: R407C (HFC)
Refrigerant charge: 0.32 Kg
Control system: PID control
Ambient temperature / humidity / altitude: Temperature: 5 to 40 ° C, humidity: 30 to 70%, altitude: max. 3000 m
Circulating: fluid system
Circulating fluid: Tap water, 15% aqueous solution of ethylene glycol
Operating temperature range: 5 to 40 ° C
Cooling capacity (50/60 Hz) W 1100/1300
Heating capacity (50/60 Hz) W 360/450
Temperature stability: ± 0.1° C
Pump:
Nominal flow rate (50/60 Hz): 7 l / min (0.13 MPa)
Maximum flow rate (50/60 Hz): 27/29 l / min
Maximum head (50/60 Hz): 14/19 m
Output: W 200
Tank capacity: Approx. 5 l
Connection: Rc1 / 2
Material in contact with the medium: Stainless steel, copper (heat exchanger brazing), bronze, ceramic / alumina, Carbon, PP, PE, POM, FKM, EPDM, PVC
Electric system:
Power supply: Single-phase 220 VAC (50/60 Hz)
Permissible voltage range: ± 10%
Circuit protection: A 15
Applicable earth leakage breaker capacity: A 15
Rated operating current: A 7.5 / 8.3
Nominal absorption (50/60 Hz): kVA 0.7 / 0.8
Noise level (50/60 Hz): dB 58/55
Weight: kg 40
(r.071221)
The HRS012 thermo-chiler is therefore the optimal choice in combination with a Strike 300 or a Labreactor Steroglass.
Thermo-chiller HRS offers convenient functions, self diagnosis and check display for easy maintenance.
An angled supply port facilitates the supply of circulating fluid, even when units are stacked.
A Large digital display provides a clear view of the current and set values.
The dustproof filter is integrated with the grill of the front panel allowing mounting and removal of the HRS filter to be done easily and without tools.
A precision temperature control method which utilizes expansion valves and temperature sensors
allowed for the realization of a product with a high temperature stability of ±0.1 °C and a small-size tank.
Due to the adoption of a sealless pump, no external leakage of the circulating fluid occurs. Also, periodic checking for pump leakage and replacement of the mechanical seal are not necessary.
FUNCTIONS:
Self diagnosis and check display for easy maintenance
Timer operation
Low tank level detecting
Power failure auto-restart
Anti-freezing
Serial communication (RS232C/RS485) and contact I/Os (2 inputs and 3 outputs) are equipped as standard.
EXAMPLES OF APPLICATION
- Solvent condensation in Strike 300 rotary evaporators
- Vapor condensation in Labreactor laboratory reactors
- Steam condensation in distillation equipment
- Arc welding machine
- Resistance welding machine
- Laser welding machine
- Laser cutting machines
- Power supply
- Fiber laser
- Connectors for transmission cables
- Secondary battery manufacturing processes
- 3D printers in metal
- UV devices for LED vulcanization
- X-ray instrumentation
- Electron microscopy
- MRI (Magnetic Resonance Imaging)
- Laser Marker Oscillator
- Machine for the control of ultrasonic waves
- Atomization device / Crushing device
- Linear motor
- Packers (food products)
- Atomization device (food and cosmetics)
- Cooling of molds
- Machines for machining centers
- Injection molding
- Temperature control of adhesives and paint materials
- Cooling of the vacuum pump
- Coupling machine by forcing
- Cabinet for gas cylinders
- Tester
- Concentration equipment
- Reagent cooling equipment
- Cleaning machine (hydrocarbon based)
- Printing machine
- Chamber electrode
- High frequency induction heating equipment
TECNIC FEATURES
Cooling method: Air cooling
Refrigerant: R407C (HFC)
Refrigerant charge: 0.32 Kg
Control system: PID control
Ambient temperature / humidity / altitude: Temperature: 5 to 40 ° C, humidity: 30 to 70%, altitude: max. 3000 m
Circulating: fluid system
Circulating fluid: Tap water, 15% aqueous solution of ethylene glycol
Operating temperature range: 5 to 40 ° C
Cooling capacity (50/60 Hz) W 1100/1300
Heating capacity (50/60 Hz) W 360/450
Temperature stability: ± 0.1° C
Pump:
Nominal flow rate (50/60 Hz): 7 l / min (0.13 MPa)
Maximum flow rate (50/60 Hz): 27/29 l / min
Maximum head (50/60 Hz): 14/19 m
Output: W 200
Tank capacity: Approx. 5 l
Connection: Rc1 / 2
Material in contact with the medium: Stainless steel, copper (heat exchanger brazing), bronze, ceramic / alumina, Carbon, PP, PE, POM, FKM, EPDM, PVC
Electric system:
Power supply: Single-phase 220 VAC (50/60 Hz)
Permissible voltage range: ± 10%
Circuit protection: A 15
Applicable earth leakage breaker capacity: A 15
Rated operating current: A 7.5 / 8.3
Nominal absorption (50/60 Hz): kVA 0.7 / 0.8
Noise level (50/60 Hz): dB 58/55
Weight: kg 40
(r.071221)
Benefits
-
FUNZIONI PRATICHE
- Funzione timer
- Funzione di conversione unità
- Funzione riavvio automatico per caduta di potenza
- Funzione anticongelamento
- Funzione blocco tasti
- Emissione segnale per completare la preparazione
- Funzionamento indipendente della pompa
- Funzione di Autodiagnosi
- Porte di comunicazione comunicazione seriale (RS232C/RS485) e I/O di contatto (2 ingressi e 3 uscite) forniti di serie
-
ESEMPI DI APPLICAZIONE
- Condensazione solventi negli evaporatori rotanti Strike 300
- Condensazione vapori in reattori da laboratorio Labreactor
- Condensazione vapori in apparati di distillazione
- Macchina per la saldatura ad arco
- Macchina per la saldatura a resistenza
- Macchina a saldatura laser
- Macchine a taglio laser
- Alimentazione elettrica
- Laser in fibra
- Connettori per cavi di trasmissione
- Processi di produzione di batterie secondarie
- Stampanti 3D in metallo
- Dispositivi UV per vulcanizzazione LED
- Strumentazione a raggi X
- Microscopia elettronica
- RMI (Risonanza magnetica per immagini)
- Marcatore laser Oscillatore
- Macchina per il controllo di onde ultrasoniche
- Dispositivo per atomizzazione / Apparecchio per frantumazione
- Motore lineare
- Imballatrici (prodotti alimentari)
- Dispositivo di atomizzazione (alimentazione e cosmetica)
- Raffreddamento di stampi
- Macchine per centri di lavoro
- Stampaggio a iniezione
- Controllo della temperatura di adesivi e materiali di verniciatura
- Raffreddamento della pompa del vuoto
- Macchina di accoppiamento per forzatura
- Armadietto per bombole a gas
- Tester
- Apparecchiatura di concentrazione
- Apparecchiatura di raffreddamento reagente
- Macchina per la pulizia (a base di idrocarburo)
- Macchina per la stampa
- Elettrodo camera
- Apparecchiatura di riscaldamento a induzione ad alta frequenza
-
AFFIDABILTA'
- La serie HRS monitora e controlla in maniera accurata il sistema di raffreddamento, in modo che possiate occuparvi di qualcos'altro.
- Fate ricorso a una soluzione intelligente che vi fornirà un controllo proattivo. Prevedete eventuali modifiche tramite in controllo remoto e gestite le anomalie e gli inconvenienti nel sistema di raffreddamento.
- Migliorate le prestazioni e l'affidabilità della vostra macchina grazie a una stabilità della temperatura superiore.
-
sicurezza
L'uso di un Termochiller vi garantirà non solo affidabilità e precisione, ma anche sicurezza.
Il metodo di regolazione precisa della temperatura mediante valvola di espansione e sensore di temperatura, ha portato a un'elevata stabilità della temperatura di ±0.1 °C e all'utilizzo di un serbatoio di piccole dimensioni.
Nessuna perdita esterna del fluido di ricircolo grazie all'utilizzo della pompa a trascinamento magnetico senza tenuta, e non ènecessario il controllo periodico delle perdite della pompa e né la sostituzione della tenuta meccanica.
Industries
Biological and diagnostic
Chemical
Herbal and phytotherapic
Pharmaceutical
Applications
Evaporation
Reaction
Refrigeration
Chemical synthesis
Thermostating
Product codes
| Steroglass code | Brand code | Description |
|---|---|---|
| SQFW087363 | 00705639S | THERMO-CHILLER S300 +5/+40°C HRS012-AF-20 |
