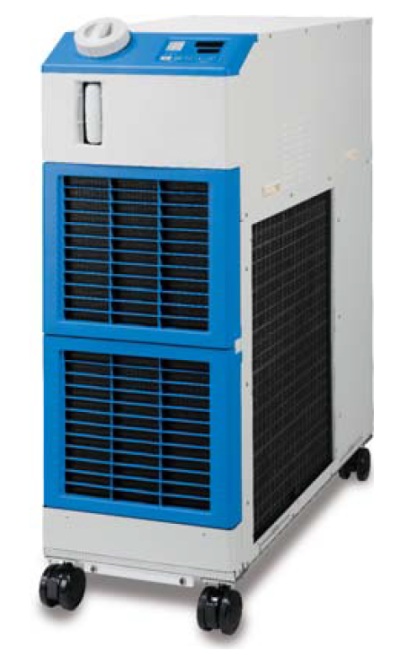

Thermo chiller S20 +5/+40°C HRSH090
Contact our expert for more informations.
The HRSH090 thermochiler is designed to meet the thermostating needs of medium-sized instrumentation, its optimal use is in conjunction with rotary evaporators and reactor or distillation coolers.
The HRSH090 thermo-chiler is therefore the optimal choice in combination with a Strike 20 or a Pilot Reactor Steroglass.
The use of a Thermo-chiller will guarantee you not only reliability and precision, but also safety.
- Thanks to the presence of the three inverters which respectively control the number of rotations of the compressor, fan and pump motor, electrical consumption is reduced by up to 53%.
- The HRSH series accurately monitors and controls the cooling system, so you can take care of something else.
- Use a smart solution that will give you proactive control. Predict any changes via remote control and manage anomalies and problems in the cooling system.
- Improve the performance and reliability of your machine with superior temperature stability.
Through the simultaneous control of the compressor and the fan of the DC inverter, and of the electronic expansion valve, a temperature stability of ± 0.1 ° C is maintained even when the thermal load fluctuates significantly.
PRACTICAL FUNCTIONS
- Timer function
- Unit conversion function
- Automatic restart function for power failure
- Anti-freeze function
- Key lock function
- Signal emission to complete the preparation
- Independent operation of the pump
- Self-diagnosis function
- Serial communication communication ports (RS232C / RS485) and contact I / O (2 inputs and 3 outputs) supplied as standard
EXAMPLES OF APPLICATION
- Solvent condensation in Strike 20 rotary evaporators
- Vapor condensation in Pilot Reactor
- Steam condensation in distillation equipment
- Laser processing machines
- Laser welding machines
- Laser cutting machines
- Cleaning machines
- Printing machines
- Injection molding
- Arc welding machines
- Resistance welding machine (spot welding)
- High frequency induction heating equipment
- Cooling water available anytime, anywhere
TECHNICAL FEATURES
Cooling method: Air cooling
Refrigerant: R410A (HFC)
Refrigerant charge: 1.32 Kg
Control system: PID control
Ambient temperature / humidity / altitude: Temperature: 5 to 45 ° C
Circulating fluid system:
Circulating fluid: Tap water, 15% ethylene glycol aqueous solution, deionized water
Operating temperature range: 5 to 40 ° C
Cooling capacity (50/60 Hz): KW 9.5
Heating capacity (50/60 Hz): KW 2,5
Temperature stability: ± 0.1 ° C
Pump:
Nominal flow rate (50/60 Hz): 45 l / min (0.5 MPa)
Maximum flow rate (50/60 Hz): 60 l / min
Maximum lifting height (50/60 Hz): 50 m
Adjustable pressure range: 0.1 - 0.5 MPa
Maximum operating flow: 20 l / min
Tank capacity: L 18
Circulating fluid inlet and outlet port: G 1
Tank drain connection: G 1/4
Material in contact with the fluid:
Metal Stainless steel, copper (heat exchanger brazing), brass (pump, Y-filter), carbon, SiC
Resin PE, PVC, POM, PTFE, NBR, EPDM, FKM
Electric system:
Power supply: Three-phase 380 to 415 V AC (50/60 Hz)
Permissible voltage range: ± 10% (Without DC voltage fluctuation)
Leakage switch applicable ground:
Rated current: [A] 20
Sensitivity of leakage current: [mA] 30
Rated operating current: [A] 8
Electric absorption: [kW (kVA)] 5.0 (5.6)
Noise level (front 1 m / height 1 m): [dB (A)] 66
Dimensions (LxWxH): mm 377x970x1080
Weight: kg 130
(r.011221)
The HRSH090 thermo-chiler is therefore the optimal choice in combination with a Strike 20 or a Pilot Reactor Steroglass.
The use of a Thermo-chiller will guarantee you not only reliability and precision, but also safety.
- Thanks to the presence of the three inverters which respectively control the number of rotations of the compressor, fan and pump motor, electrical consumption is reduced by up to 53%.
- The HRSH series accurately monitors and controls the cooling system, so you can take care of something else.
- Use a smart solution that will give you proactive control. Predict any changes via remote control and manage anomalies and problems in the cooling system.
- Improve the performance and reliability of your machine with superior temperature stability.
Through the simultaneous control of the compressor and the fan of the DC inverter, and of the electronic expansion valve, a temperature stability of ± 0.1 ° C is maintained even when the thermal load fluctuates significantly.
PRACTICAL FUNCTIONS
- Timer function
- Unit conversion function
- Automatic restart function for power failure
- Anti-freeze function
- Key lock function
- Signal emission to complete the preparation
- Independent operation of the pump
- Self-diagnosis function
- Serial communication communication ports (RS232C / RS485) and contact I / O (2 inputs and 3 outputs) supplied as standard
EXAMPLES OF APPLICATION
- Solvent condensation in Strike 20 rotary evaporators
- Vapor condensation in Pilot Reactor
- Steam condensation in distillation equipment
- Laser processing machines
- Laser welding machines
- Laser cutting machines
- Cleaning machines
- Printing machines
- Injection molding
- Arc welding machines
- Resistance welding machine (spot welding)
- High frequency induction heating equipment
- Cooling water available anytime, anywhere
TECHNICAL FEATURES
Cooling method: Air cooling
Refrigerant: R410A (HFC)
Refrigerant charge: 1.32 Kg
Control system: PID control
Ambient temperature / humidity / altitude: Temperature: 5 to 45 ° C
Circulating fluid system:
Circulating fluid: Tap water, 15% ethylene glycol aqueous solution, deionized water
Operating temperature range: 5 to 40 ° C
Cooling capacity (50/60 Hz): KW 9.5
Heating capacity (50/60 Hz): KW 2,5
Temperature stability: ± 0.1 ° C
Pump:
Nominal flow rate (50/60 Hz): 45 l / min (0.5 MPa)
Maximum flow rate (50/60 Hz): 60 l / min
Maximum lifting height (50/60 Hz): 50 m
Adjustable pressure range: 0.1 - 0.5 MPa
Maximum operating flow: 20 l / min
Tank capacity: L 18
Circulating fluid inlet and outlet port: G 1
Tank drain connection: G 1/4
Material in contact with the fluid:
Metal Stainless steel, copper (heat exchanger brazing), brass (pump, Y-filter), carbon, SiC
Resin PE, PVC, POM, PTFE, NBR, EPDM, FKM
Electric system:
Power supply: Three-phase 380 to 415 V AC (50/60 Hz)
Permissible voltage range: ± 10% (Without DC voltage fluctuation)
Leakage switch applicable ground:
Rated current: [A] 20
Sensitivity of leakage current: [mA] 30
Rated operating current: [A] 8
Electric absorption: [kW (kVA)] 5.0 (5.6)
Noise level (front 1 m / height 1 m): [dB (A)] 66
Dimensions (LxWxH): mm 377x970x1080
Weight: kg 130
(r.011221)
Benefits
-
FUNZIONI PRATICHE
- Funzione timer
- Funzione di conversione unità
- Funzione riavvio automatico per caduta di potenza
- Funzione anticongelamento
- Funzione blocco tasti
- Emissione segnale per completare la preparazione
- Funzionamento indipendente della pompa
- Funzione di Autodiagnosi
- Porte di comunicazione comunicazione seriale (RS232C/RS485) e I/O di contatto (2 ingressi e 3 uscite) forniti di serie
-
ESEMPI DI APPLICAZIONE
- Condensazione solventi negli evaporatori rotanti Strike 20
- Condensazione vapori in Pilot Reactor
- Condensazione vapori in apparati di distillazione
- Macchine di lavorazione a Laser
- Macchine a saldatura laser
- Macchine a taglio laser
- Macchine per la pulizia
- Macchine per la stampa
- Stampaggio a iniezione
- Macchine di saldatura ad arco
- Macchina per la saldatura a resistenza (saldatura a punti)
- Apparecchiatura di riscaldamento a induzione ad alta frequenza
- Acqua di raffreddamento disponibile sempre e ovunque
-
AFFIDABILTA'
- Grazie alla presenza dei tre inverter che controllano rispettivamente il numero di rotazioni del motore del compressore, della ventola e della pompa, il consumo elettrico viene ridotto anche del 53%.
- La serie HRSH monitora e controlla in maniera accurata il sistema di raffreddamento, in modo che possiate occuparvi di qualcos'altro.
- Fate ricorso a una soluzione intelligente che vi fornirà un controllo proattivo. Prevedete eventuali modifiche tramite in controllo remoto e gestite le anomalie e gli inconvenienti nel sistema di raffreddamento.
- Migliorate le prestazioni e l'affidabilità della vostra macchina grazie a una stabilità della temperatura superiore.
-
SICUREZZA
L'uso di un Termo-chiller vi garantirà non solo affidabilità e precisione, ma anche sicurezza.
Attraverso il controllo simultaneo del compressore e della ventola dell'inverter DC, e della valvola d'espansione elettronica, viene mantenuta una stabilità della temperatura di ±0.1 °C anche quando il carico termico oscilla sensibilmente.
Industries
Biological and diagnostic
Chemical
Herbal and phytotherapic
Pharmaceutical
Applications
Evaporation
Reaction
Refrigeration
Chemical synthesis
Thermostating
Product codes
| Steroglass code | Brand code | Description |
|---|---|---|
| SQFW087364 | THERMO CHILLER S20 +5/+40°C HRSH090-AF-40 |
