Tartaric stability analyzer EasyCheck
Contact our expert for more informations.
EasyCheck is the latest innovation for the determination of tartaric and calcic stability in wine.
Tartaric stabilization is related to precipitation phenomena caused by potassium and tartaric acid present in wine. These two substances are naturally present in the grapes but without chemically coming into contact; when the grapes are pressed, on the other hand, the two substances mix and can create problems of precipitation of potassium bitartrate. This precipitation is a slow process that can occur in the winery after fermentation of the must or directly in the bottle, after the wine has been bottled, once the wine reaches the wine shop shelves. This phenomenon does not cause any organoleptic damage in wine but certainly, visually, the product is not considered of a good quality and is not accepted by an increasingly demanding consumer and market.
Benefits
-
Easy to use

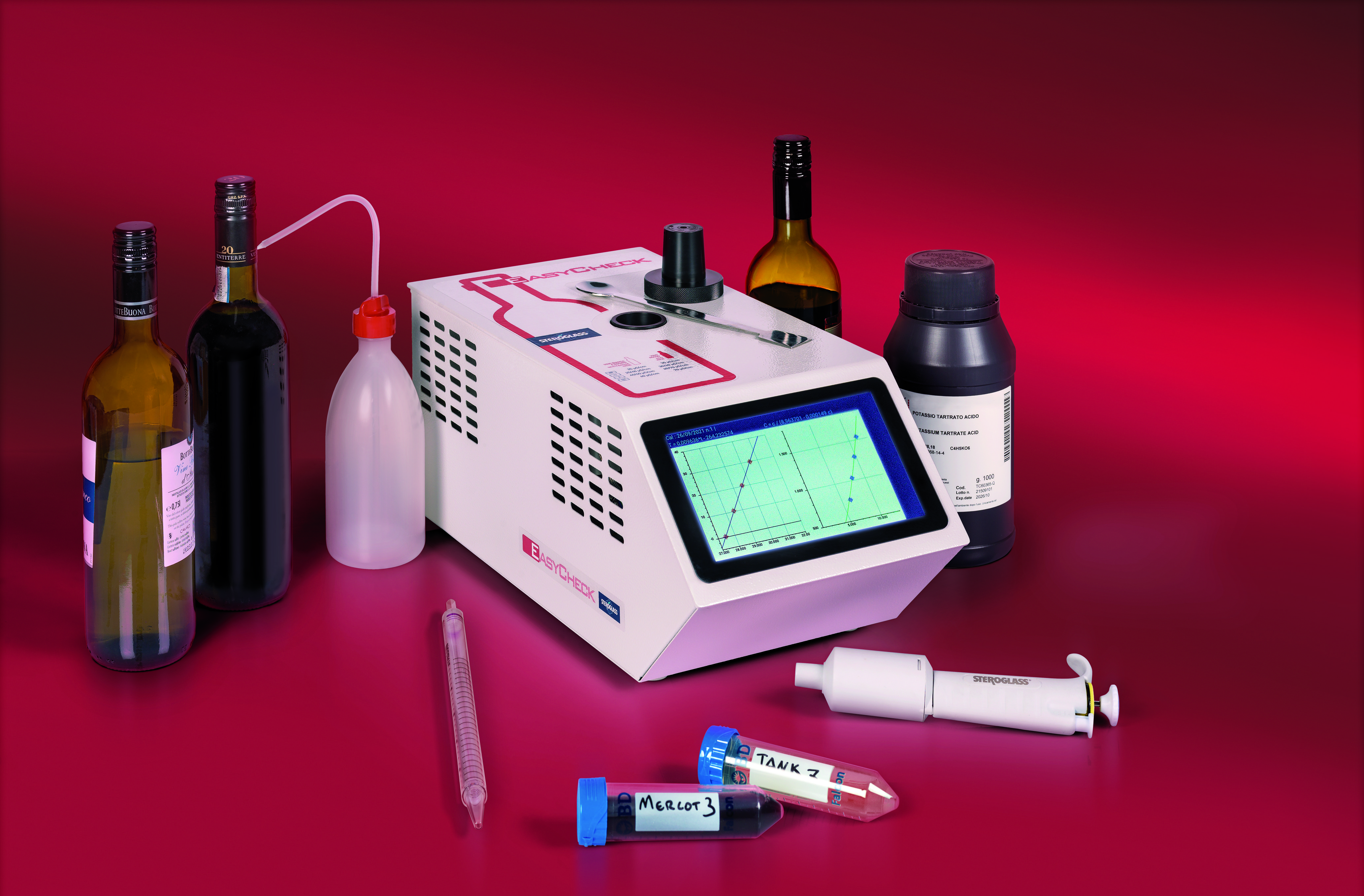

Easy Check is an ultra-compact analyzer that requires only electrical power for proper operation and sample cooling. Fast and easy to use, it provides repeatable measurement of stability along with the ability to store records electronically
-
Calcic stability in wine
Steroglass Research & Development, relying on the fact that to assess the solubility of a salt in a liquid, heating is extremely faster and more linear than cooling, has developed an innovative method that allows the Easycheck analyzer to exploit the properties of saturation temperature, thus limiting the inhibiting action of factors that counteract calcium tartrate precipitation and allowing very short analysis times, on the order of two hours.
The evaluation of calcium stability will then be analyzed as a function of wine Saturation Temperature. Comparative tests carried out on numerous samples, also together with certified laboratories, show total conformity between the result of the main precipitation tests and the innovative EasyCheck method.
-
Complete characterization of your wines
In addition to the measurement of Tartaric and Calcium stabilities, EasyCheck allows a complete characterization of the wine by giving the winemaker very important information related to:
TS Saturation Temperature;
TSS Stable Saturation Temperature;
TCC Critical temperature of crystallization;
SSS Stable supersaturation zone;
Technical features
The working principle of Easy Check is to promote the precipitation of potassium tartrate by adding excess THK. Stability measurement is then derived from determining the electrical conductivity of wine under different temperature conditions.
- Conductivity meter: sensitivity ±2 µS/cm in isotherm; measuring range 0 ÷ 4000 µS/cm
- Thermometer: sensitivity 0.01°C; accuracy 0.1°C; measuring range -30°C ÷ +50°C
- Analysis chamber: volume 25 ml; magnetic stirrer
- Built-in computer: ARM 4 core CPU 1.4 GHz or higher
- Overall dimensions: width cm 21; height cm 20; depth cm 43;
- Weight about 8 kg
Download
Industries
Applications
Product codes
| Codice Steroglass | |
|---|---|
| SQRQ076826 | ANALIZZATORE STABILITA' TARTARICA |
| BDMG074859 | SOLUZIONE COND.1413uS/cm DFM 500ml |
| SQRP082200 | KIT TOOLS PER EASYCHECK |
| TIPE084660 | POTASSIO TARTRATO ACIDO 1000g |
| SQRP074912 | CALCIO L-TARTRATO IDRATO 100gr |
| BDSG088852 | TERMOMETRO TEMP 7 VIO K/T S/SONDA |
| BDSG060892 | SENSORE TERMOCOPPIA K 3K220 |
