Strike 100 ATEX Rotary evaporator
Contact our expert for more informations.

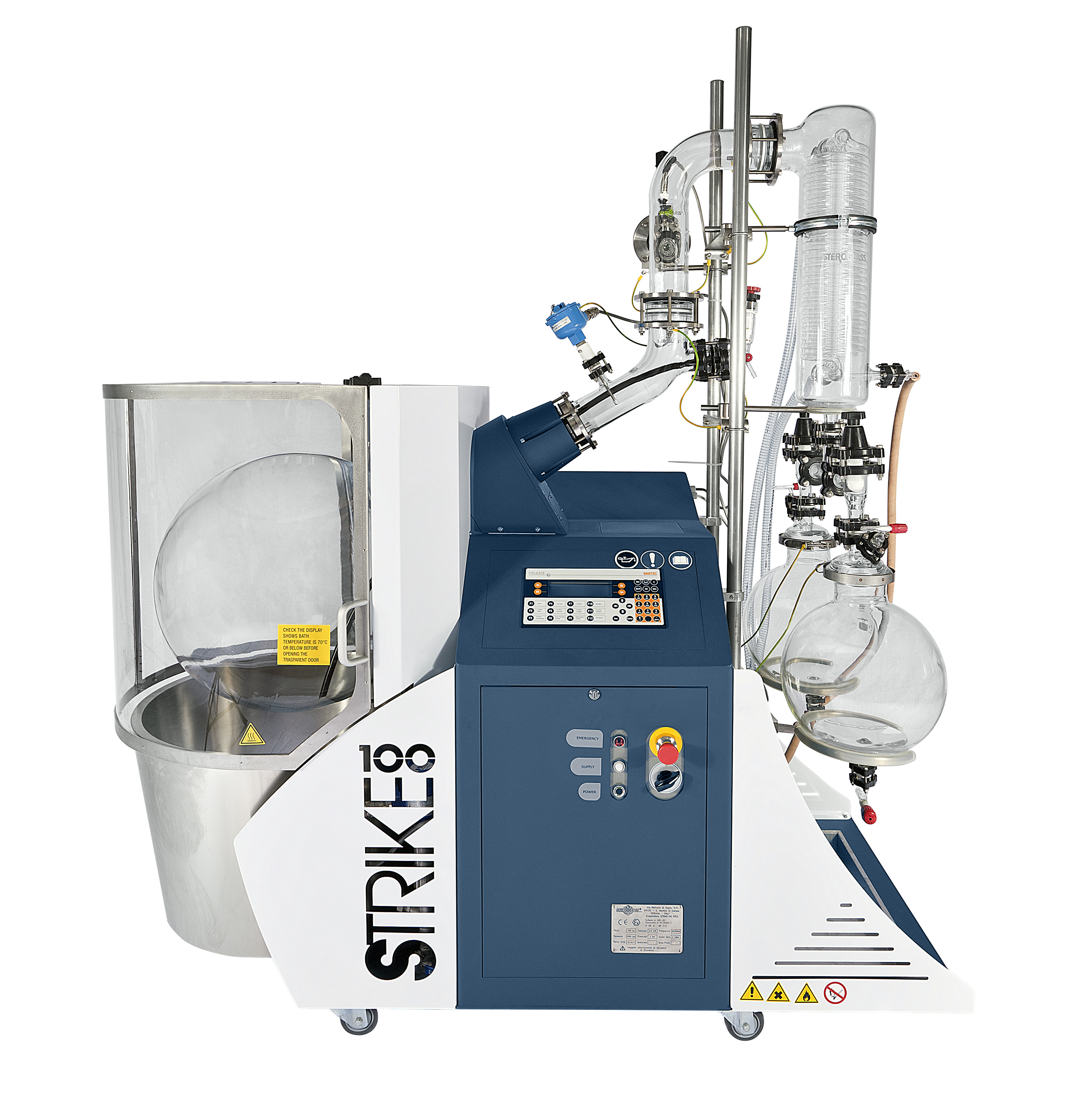

STRIKE 100 ATEX is an industrial rotary evaporator designed to optimize evaporation and condensation processes, ensuring high performance and the best operator safety.
The ultra-stable and robust PLC electronics allow for continuous industrial use over time. All components are Atex-certified, making the instrument suitable for use in a Zone 1 classified area.
• Evaporation and Condensation System
The core of the process: a rotating evaporation flask heated in a thermal bath and a condenser that collects vapours in one or two collecting flasks.
• High-Performance Rotating Head
The rotation system ensures smooth and precise movement of the evaporation flask, optimizing the distillation process.
• High-Quality Glassware
All glass components are made of borosilicate 3.3 ISO 4586, guaranteeing superior thermal and chemical resistance.
• Robust and Versatile Structure
A painted steel frame, mounted on wheels for optimal mobility, and anticorodal aluminum panels ensure durability and resistance.
• Integrated Protection Cabinet
An essential safety feature: it protects the operator from hot liquid splashes and accidental impacts. Equipped with a magnetic safety sensor that immediately stops operation in case of accidental opening.
• Maximum Energy Efficiency
Thanks to the integrated vacuum system, STRIKE 100 ATEX lowers the product’s boiling point, allowing operation at lower temperatures, saving energy, and reducing process times.
STRIKE 100 ATEX is the ideal solution for separating products from liquid solutions quickly, safely, and efficiently.
Benefits
-
Safety in Hazardous Environments
STRIKE 100ATEX is the ideal instrument for operating in potentially explosive atmospheres (classified zones due to gas presence).
It is specifically designed for installation in ATEX-classified zones for IIB T3 or T4 gases and is also suitable for working with potentially flammable substances that could create hazardous areas of the same type.
-
Compliance with European and International Regulations
STRIKE 100 ATEX complies with Directive 2014/34/EU and international safety standards, ensuring that the product can be used without issues in explosion-risk areas classified for IIB T3 or T4 gases.
-
Prevention of Fires and Explosions
Thanks to specific design solutions (such as fireproof enclosures, spark protection, and over-temperature safeguards), this instrument minimizes the risk of fires and explosions, protecting operators, facilities, and materials.
-
Reliability and Durability in Extreme Conditionse
ATEX devices are designed to withstand harsh environmental conditions, including the presence of flammable substances, ensuring consistent performance over time.
-
Greater Industrial Applicability
An ATEX-certified device can be used in chemical, petrochemical, pharmaceutical, and food industries, where the risk of explosive atmospheres is high. In contrast, a non-ATEX-certified instrument is limited to safe zones, reducing its versatility
-
Reduced Legal and Insurance Risks
Using non-ATEX-certified instruments in hazardous environments can lead to penalties, insurance issues, and liability in case of accidents. A compliant instrument protects the company from these risks.
Technical features
Thermal Bath
• Working range (°C): [ambient; 150]
• Accuracy (°C): ±2
• Resolution (°C): 0.1
• Set point: YES (1°C increments)
• Heating bath power: 8 kW
• Heater density: < 2 W/cm², making it suitable for use with oil
• Overheating protection: Yes
• Temperature sensor: Three-wire PT100 probe
• Level sensor: Yes
• Bath filling: Yes – Manual
Vapour Temperature
• Working range (°C): [ambient; 150]
• Accuracy (°C): ±1
• Resolution (°C): 0.1
• Temperature sensor: Three-wire PT100 probe
Rotation
• Speed range (rpm): The machine can rotate the evaporation flask from 5 to 100 rpm on average. The speed depends on the volume of the mounted flask—the larger the flask, the lower the rotation speed.
• Speed accuracy (rpm): ±2
• Speed reading resolution (rpm): 1
• Rotation speed monitoring: Yes
Vacuum Control
• Working range (absolute mbar): [2; 999]
• Resolution (mbar): ±1
• Absolute vacuum sensor: Yes
• Display: Digital
• Vacuum regulation: Yes
Lifting System
• ON/OFF lift control: Yes
• Hydraulic lifting: Yes
Interface
• PLC interface: Yes
• Data export: Yes
• Remote control: Yes (via serial connection with MODBUS protocol, configurable at the time of sale)
General Features
• Rotation speed monitoring: Yes
• Static safety (lock, tilt, heating): Yes
• 100L evaporation flask: Yes
• 50L evaporation flask: Yes
• 20L evaporation flask: Yes
• 20L collection flask: Yes, 2
• Condenser heat exchange surface (m²): Approx. 1.5 (customizable)
• Safety rupture disk: Yes
• Quick-lock system: Yes
• ATEX-compliant production: Yes
• ATEX certification number: EPTI 15 ATEX 0181

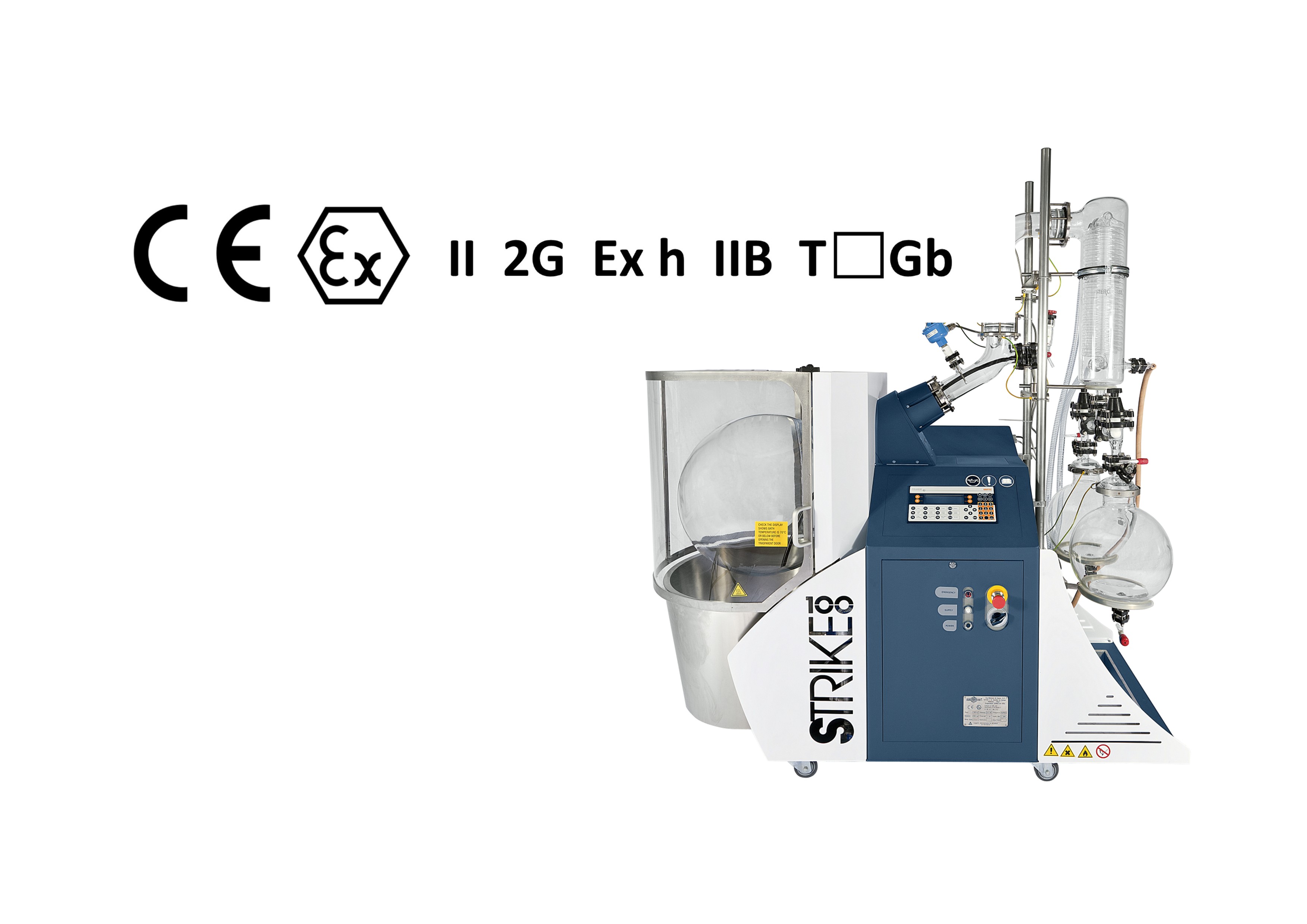

• ATEX protection class: II 2G Ex h IIB T3 Gb – T4 available upon request
• Dimensions in reflux configuration (LxWxH mm): 900x1840x2280 ±20mm
• Dimensions in downward configuration (LxWxH mm): 900x1840x2210 ±20mm
• Weight (kg): 350-400
Download
STRIKE100 ATEX is fully controlled by a PLC (Programmable Logic Controller), allowing users to both monitor and set parameters directly via the control panel.
The vacuum controller is integrated and managed directly by the software.
Advanced control algorithms enable a fully automated execution of the evaporation, distillation, or solvent separation process by reading the vapour temperature.
The following operating conditions can be set and monitored:
• Bath temperature
• Rotation speed
• Vapour temperature
• Vacuum level
Any value error or abnormal temperature will immediately cut off the power supply.
Industries
Applications
Product codes
Steroglass code | Glassware | Collecting flasks | Evaporating flasks |
---|---|---|---|
SQFU069848 | Reflux | 2 of 20L each | 100L |
SQFU069849 | Reflux | 20L | 100L |
SQFU069850 | Descending | 2 of 20L each | 100L |
SQFU069851 | Descending | 20L | 100L |
SQFU069852 | Reflux | 2 of 20L each | 50L |
SQFU069853 | Reflux | 20L | 50L |
SQFU069854 | Descending | 2 of 20L each | 50L |
SQFU069855 | Descending | 20L | 50L |
