STEROGLASS

Automatic titrator FLASH

Analytical instruments
Automatic Titrators

Contact our expert for more informations.

Request information

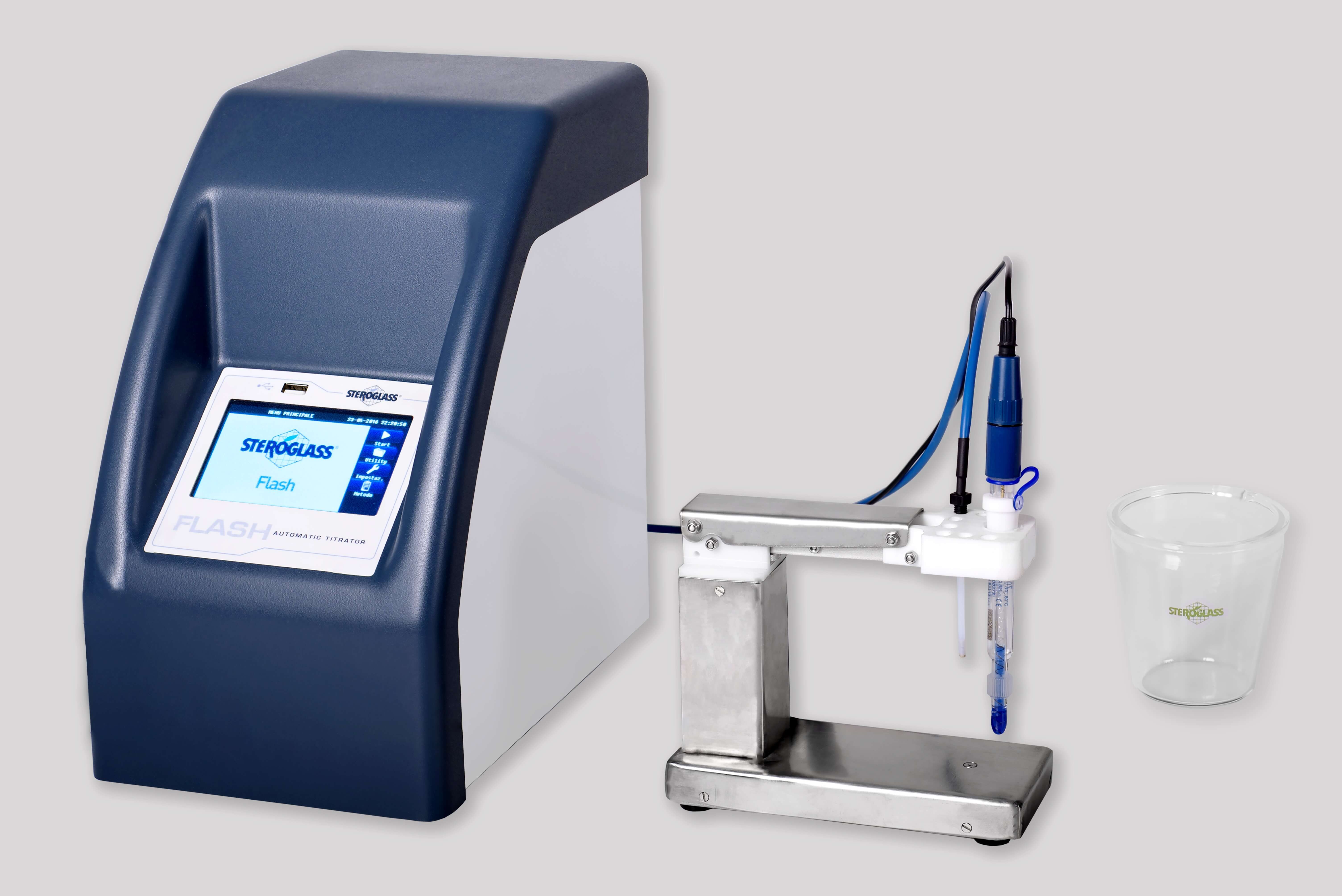

Automatic titrator Flash has been designed to simply and precisely satisfy and perform the widest range of potentiometric titrations.

Up to two automatic burettes for titrant delivery and three peristaltic pumps can be installed. Automatic pH, acidity and SO2 analyses are made easy and simple.

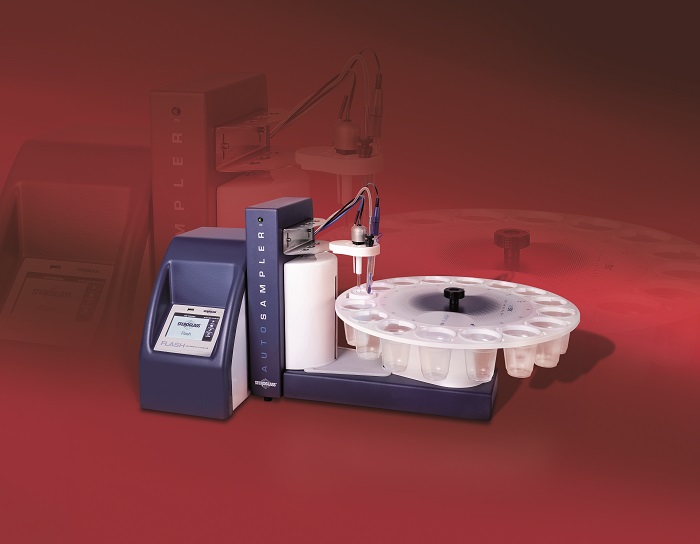

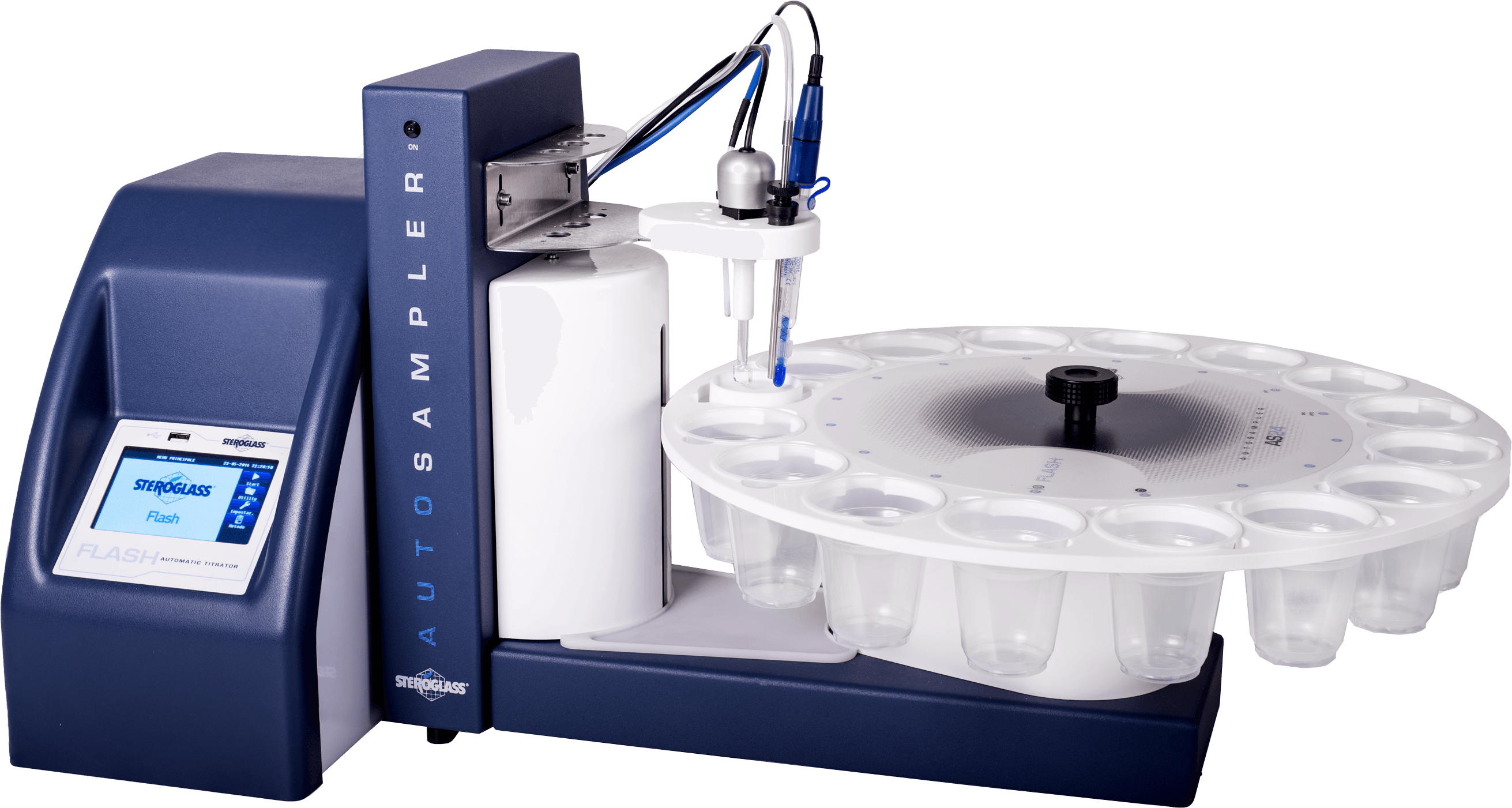

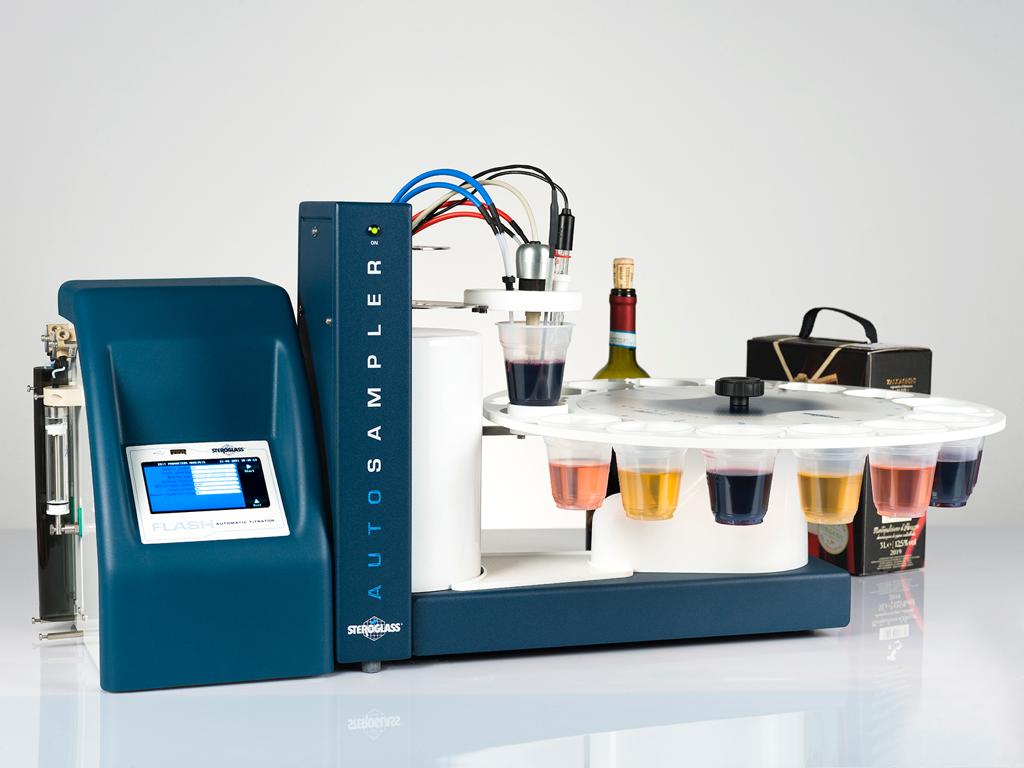

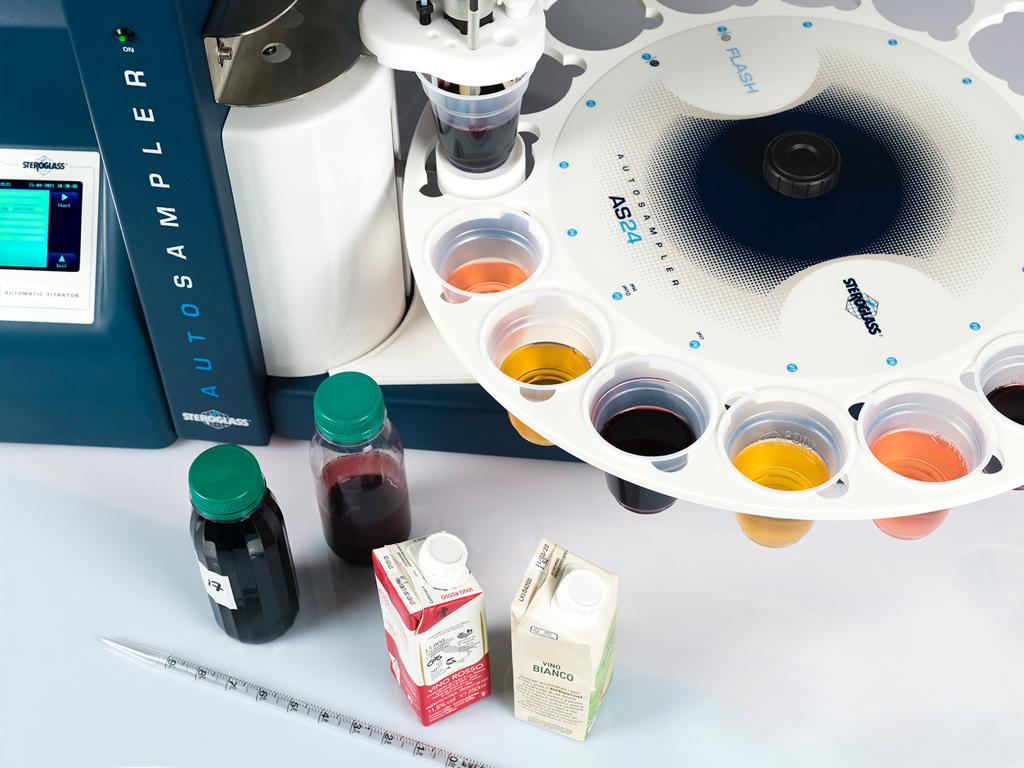

Both a single analysis stand and 16 or 35 positions autosamplers can be connected to Flash.

The instrument has been designed to optimize the sample auto-level analysis procedure speeding up the whole preparation. The optional degassing system ensures a complete automatic analysis procedure with no external sample pre-tratment needed.

Its new design features light weight and small footprint.

Dimensions dxlxh 294x215x308mm



Titolatore automatico flash analisi vini
Titolatore automatico flash analisi vino

Benefits

  • Compact

    Flash is a compact-modular instrument and can be both upgraded and configutated to satisfy the ever-changing laboratory needs

  • Easy-to-use

    The colored touchscreen display guides the user in each programming, analysis and data interpretation phase;

  • On-line graphics

    During the titration process, a graph giving the analysis trend is displayed in real time.

Request a quote

Technical features

SPECIFIC PROGRAMS ONLY FOR OENOLOGICAL ANALYSES

  • pH and total acidity: performed with a pH electrode on tel quel sample (editable pH end-point titration)
  • Free, total and combined SO2: performed with double platinum electrode on tel quel sample (ripper method)
  • pH calibration and reagents standardization: optional calibration with several buffers (e.g. 7/3pH)



AUTOMATIC BURETTES

Up to 2 burettes can be installed:

  • burette equipped with 12.000 high definition stepper motor
  • 10ml clear glass syringe and tip made of interchangeable PTFE
  • Three-way valve (titrant/cleaning reactant suction, titrant delivery, syringe) made of anti-corrosive material



PUMPS

Very often a titration process requires addition of auxiliary reagents such as acid for acidifying, water for diluting, etc...

With up to a maximum of 3 peristaltic pumps, operated together or separately, every phase of the titration process can be made totally automatic.

Delivery: 1ml/sec

Internal tube: noprene

External tube: PVC and PTFE



Accessories

Printer; Single analyses stand; Sampler: 16 and 35 positions; Automatic degasser; Software for data man-agement on external PC

  • Internal memory: 50 analyses, 10 calibrations; 30 methods
  • Data export: date, hour, operator ID, sample ID, method, result, titrant volume
  • pH calibration: a) 1 buffer calibration (7) b) 2 buffers calibration (7, 4 or 10) c) Theorical (Nernst equation) d) Oenologi-cal: 2 buffers calibration (7, 3), Temperature compensation with pt100 probe during pH Calibration; Buffer auto-recognize; Refusal defective electrodes; Notice expired calibration
Request a quote

Download

Download the technical datasheet
Industries
Food
Oenological
Applications
Food analysis
Wine analysis
Titration

Product codes

Steroglass code Brand code Description
SQTR078625   FLASH BASIC MILK pH/Ac/Chloride SINGLE POSITION
SQTR078633   FLASH CONSERVE pH/Ac/Chloride AS24 sampler
SQTR078634   FLASH BASIC OIL pH/Ac/Peroxide SINGLE POSITION
SQTJ076925   FLASH OIL pH/Ac/Peroxide SINGLE POSITION
SQTR076926   FLASH OIL pH/Ac/Peroxide AS24 sampler
SQTR073719   FLASH WINE pH/TA SINGLE POSITION
SQTR073720   FLASH WINE SO2 SINGLE POSITION
SQTR078621   FLASH BASIC WINE pH/Ac/SO2 SINGLE POSITION
SQTR073721   FLASH WINE pH/TA/SO2 SINGLE POSITION
SQTR073722   FLASH WINE pH/TA SINGLE POSITION WITH DEGASSER
SQTR073723   FLASH WINE pH/TA/SO2 SINGLE POSITION WITH DEGASSER
SQTR078626   FLASH BASIC MILK pH/Ac/Chloride SINGLE POSITION
SQTR073724   FLASH WINE pH/TA WITH AS24 SAMPLER
SQTR073725   FLASH WINE SO2 WITH AS24 SAMPLER
SQTR073726   FLASH WINE pH/TA/SO2 WITH AS24 SAMPLER
SQTR073727   FLASH WINE pH/TA WITH AS24 SAMPLER AND DEGASSER
SQTR073728   FLASH WINE pH/TA/SO2 WITH AS24 SAMPLER AND DEGASSER
SQTR073729   FLASH WINE pH/TA WITH AS24 MICRO SAMPLER
SQTR073730   FLASH WINE SO2 WITH AS24 MICRO SAMPLER
SQTR073731   FLASH WINE pH/TA/SO2 WITH AS24 MICRO SAMPLER
SQTR073732   FLASH WINE pH/TA WITH AS24 MICRO SAMPLER AND DEGASSER
SQTR073733   FLASH WINE pH/TA/SO2 WITH AS24 MICRO SAMPLER AND DEGASSER
SQTR078627   FLASH MILK pH/Ac/Chloride AS24 sampler
SQTR078624   FLASH POST KJELDAHL NITROGEN SINGLE POSITION
SQTR078628   FLASH BASIC JUICES pH/Ac/Ascorbic Acid SINGLE POSITION
SQTR078629 KC28104 FLASH JUICES pH/Ac/Ascorbic Acid SINGLE POSITION
SQTR078630   FLASH JUICES pH/Ac/Ascorbic Acid AS24 sampler
SQTR078631   FLASH BASIC SAUCE pH/Ac/Chloride SINGLE POSITION
SQTR078632   FLASH SAUCE pH/Ac/Chloride SINGLE POSITION
